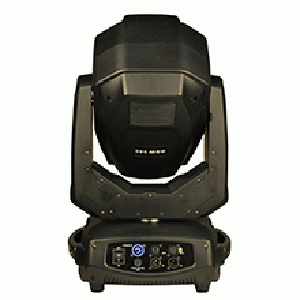

MHBSWZ-350(17R)A1B-Yodn

Moving Head Beam+Spot+Wash+zoom, 2.5°-25°,350W,17R,Yodn LAMP,IP20,Black Shell

Categories: .

Light Source:
350W Yodn 17R
2,200 Hour average lamp life

Beam Angle:
prism rotating Zoom: parallel beam angel 2.5°-25° change

Optics
Lens : high precision optical lens
Beam angle@Beam mode: 0°-3.8°
Beam angle@Spot mode: 2°-30°
Beam angle@Wash mode: 20°-45°

Colors
Color wheel: 13 dichroic filters + white

Gobos
Gobo wheel : 14 static gobo + 9 Rotation gobo

Prism
Prism wheel: 2 rotating prisms 6-linear prism and 8 (16) -facet prism

Control
Control mode : Standard DMX512, Automatic and Master/ slave mode
Channel : 16 CHs / 24 CHs
Controller can open the lamp and reset, including delaying function

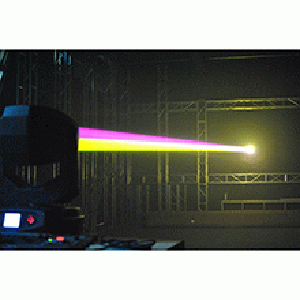

Effects
Electronic linear Zoom
Zoom motor: 1pcs linear 2-phase motors, low noise
Electronic linear focus
Prism 1: 12-facet circular prism
Prism 2: 24-facet circular prism
Prism: indexable, replaceable, Bi-directional rotation at variable speed
Mechanical dimmer and strobe: dual shutter
Strobe: 1-20 flashes/sec.
Built-in movement macros
Built-in effects macros
Built-in color changing macro

Movement
Pan/Tilt : X axis 540° Y axis 270°automatically accurate positioning
Fixation option: Pan/Tilt-lock mechanism

Connectors
5pin DMX Art-net or 3pin DMX Art-net
powerCon In

Power
100 – 240 VAC, 50/60 Hz

Power Consumption
470 W max.

Operating Temperature
13 to 113°F (-25 to 45°C)

Approvals and Ratings
CE pending
IP20 rated

Working Position
Any

Dimensions
385x 365 x 589 mm)

Weight
19 kgs
