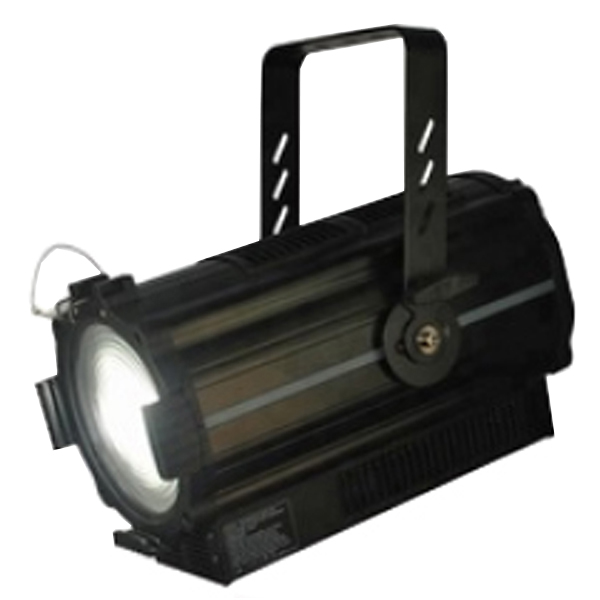

LED Theatre Wash Fresnel Zoom 300W
LED Theatre Wash Fresnel Zoom 300WLED Theatre Wash Fresnel Zoom 300WLED Theatre Wash Fresnel Zoom 300WLED Theatre Wash Fresnel Zoom 300WLED Theatre Wash Fresnel Zoom 300W

LFZ300A1-(CW)B

LED Theatre Wash Fresnel,300W,5800-6200K, 15°-55°,IP20,Black Shell

Source
• Led: COB 300W, cool white
• Led brand: GeTian
• Led average lifespan: >50,000hrs
• Drive mode: constant current
• Drive current (mA): 5,800

Optics
• Beam angle: 15°-55°
• Color temp: 5800-6200K
• Color rendering index(CRI): Ra>82
• Light ouput (full Bright)@15°: 5,064Lux@4mtr
Light ouput (full Bright)@55°: 2,576Lux@4mtr

Effect:
•Electronic dimmer: 0-100% linear
•Electronic strobe: 1-25 flashes/sec.

Control and programming
• Control mode: DMX, Master/Slave
• DMX Channels: 2/3CH
“• Onboard programming functionality enables programming
without external DMX controller ”
• Display: LCD backlit, with English menu
• LCD backgound light 10-100% adjustable
• DMX Data In/Out: both XLR 3Pin and XLR 5Pin

Power Supply:
•Power supply: AC100V-240V, 50/60Hz (auto-ranging)
•Power consumption: Max.330W
•Auto switching power supply unit, PFC>0.95
•Power In/Out: Powercon, daisy chain
•Power linking: up to 2units@120V; 5units@230V

Data Connection:
•Data Connectors In/Out: XLR 3Pin & XLR 5Pin

Body
• Housing: streching aluminium
• Housing color: black (white optional)
• Housing surface treatment: baking finished

Safety Devices
• Electronic protection against short circuit

Thermal Specification
•Environmental temperature: -20 °C – 40 °C

Cooling System
•Cooper heat pipe cooling system for LED source
•Cooling: forced air convection, with 2 slient fans

Internal protection
• IP rating: IP20

Mechanical Specification
•Length: 270 mm
•Width: 276 mm
•Height: 50 mm
•Net Weight: 8.5 kgs

Accessories
• Barndoor included
• Power input cable included, length 1.5mtr
• DMX cable included, length 2mtr
• Safety cable not included (optional)

Approval:
•CE
