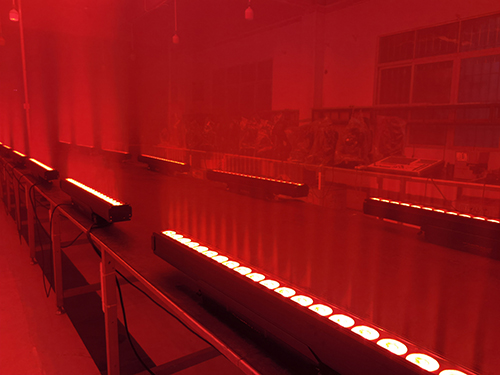

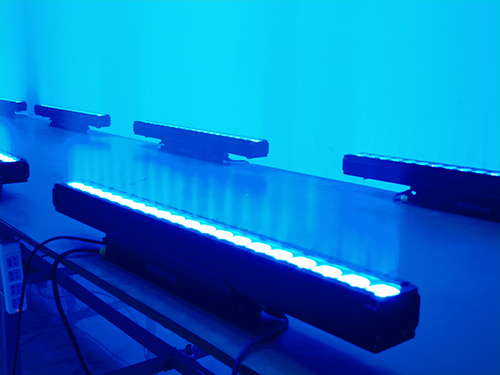

rearside 1side 2effect 1effect 2effect 3

LPBO-2015A1(4IN1)B

LED Pixel Bar Outdoor, 20X15W RGBW 4in1, 25° ,IP65,Black Shell

ELECTRICAL
▪ AC power: 100-240 V nominal, 50/60 Hz
▪ Typical total power consumption: 400 W

OPTICS
▪ Light source: 20X15W RGBW 4in1
▪ Beam Angle:6°,8°,12°,15°,25°,45° optional
▪ Minimum LED lifetime: 50 000 hours (to >70% luminous output)

DYNAMIC EFFECTS
▪ Color change: Built-in color changing macro, speed adjustable
▪ Built-in color macro: color fade in & out,  color jumping, speed adjustable
▪ Built-in Demo macro: Built-in 20 auto run programmes, speed adjustable
▪ Pixel control:Pixel individual control, each color of each LEDs can be controlled alone
▪ Built-in chasing macro: speed adjustable

CONTROL AND PROGRAMMING
▪ Control options: DMX512
▪ Control mode: DMX, Autorun, Sound-activate
▪ DMX channels: 11/27/80/91CH

CONSTRUCTION
▪ Housing: Cast aluminum body
▪ Housing surface: baking finished treatment
▪ Color(s): black (white optional)
▪ Protection rating: IP65

INSTALLATION
▪ Mounting: 2pcs bracket, surface for truss mount
▪ Bottom mount for safety wire
▪ Orientation: Any
▪ Location: Outdoor

CONNECTIONS
▪ AC power in/thru: PowerCon
▪ DMX data in/thru: 3-pin XLR (5-pin XLR Optional)

THERMAL
▪ Cooling: natural convection (no fan, no noise)
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

PHYSICAL
▪ Length: 1004 mm
▪ Width: 95 mm
▪ Height: 130 mm
▪ Weight: 9.5 kg

ACCESSORIES
▪ Power Input cable: included
▪ DMX Cable: included
▪ Mounting bracket: included (2pcs)
▪ Stands: included (2pcs)
▪ Safety cable: included (1 pc)
