POWER SUPPLY
▪ Power supply: AC100V-240V; 50/60Hz
▪ Power consumption: Max. 22W
▪ Power Supply Unit (PSU): 25W

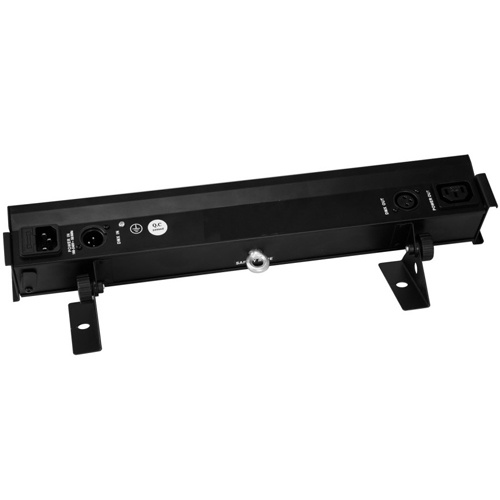

▪ Power In/Out: IEC, daisy chain
LIGHT SOURCE

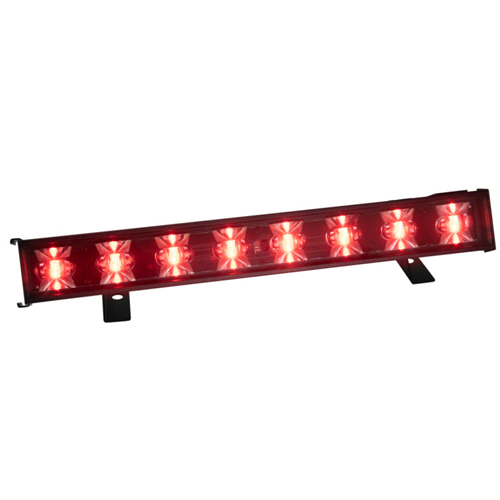

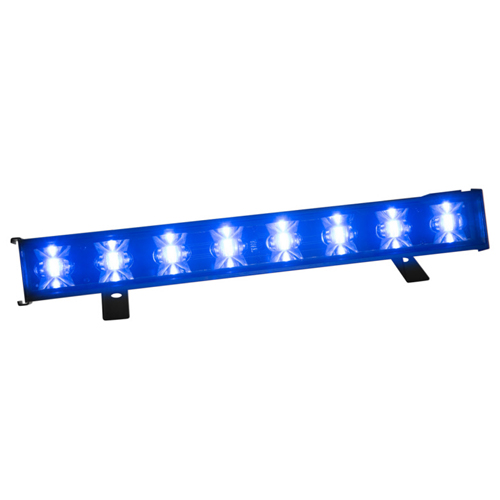

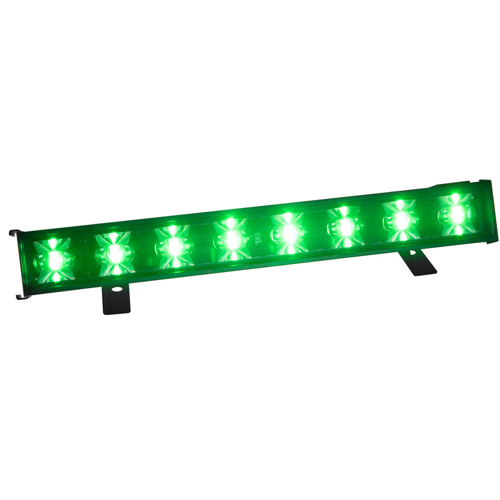

▪ LEDs: 8pcs 3W, RGB 3-in-1
▪ Luminance: Max. 1,680 lm
▪ Drive mode: constant current
▪ Drive current: 350mA
OPTICS
▪ Beam angle: 110°
▪ Light ouput (full right): 86Lux@4mtr
▪ Optic lens material: acrylic, rainbow effect
DIMMER & STROBE
▪ Electronic dimming: 0-100% linear, 16bit smooth dimming
▪ Refresh rate: >2.4K Hz (Flicker free) , suitable for TV applications and all video recorded events
▪ Dimming curve: 5 types
▪ Electronic strobe: 1-20 flashes/sec.
▪ Built-in strobe macro: 5 Strobe effects: normal, pulse, random, average, exposure
EFFECTS
▪ Color change: Built-in color changing macro, speed adjustable
▪ Built-in color macro: color fade in & out, color jumping, speed adjustable
CONTROL MODE
▪ Control protocol:DMX512
▪ Control mode: DMX, Auto, Master/Slave, Sound-activate
▪ DMX channels: 4/8CH
▪ DMX data In/Out: XLR 3Pin (XLR 5Pin optional)
DISPLAY & MENU SETTING
▪ Display: 4-digit LED
▪ Setting and addressing: via 4-menu-button
▪ Menu language: English
PAN-TILT
▪ Tilt: ±50º (support bracket)
BODY & HOUSING
▪ Housing: aluminium alloy and iron
▪ Housing surface: baking finished treatment
▪ Housing color: black (white optional)
COOLING
▪ Cooling: natural convection (no fan, no noise)
SAFETY PROTECTION
▪ Fuse: 1.0A 120V, 0.75A 240V
▪ Electrical protection: Electronic protection against short circuit
▪ Rigging protection: with safety chain through holes at the rear
RIGGING & MOUNTING
▪ Mounting: Mounting bracket: 2pcs/pair
SPLICING & ASSEMBLING
▪ Splicing: Convenient splicing design
ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Dimensions(mm): W415 x D85 x H110
▪ Net weight: 0.95kg
ACCESSORIES
▪ Power input cable: 1.0mm2, PVC sheath, length 1.2mtr
▪ DMX cable: included
▪ Safety cable: not included (optional)
▪ Mounting bracket: included (2pcs/pair)
