LCCW-100A1(WW)B

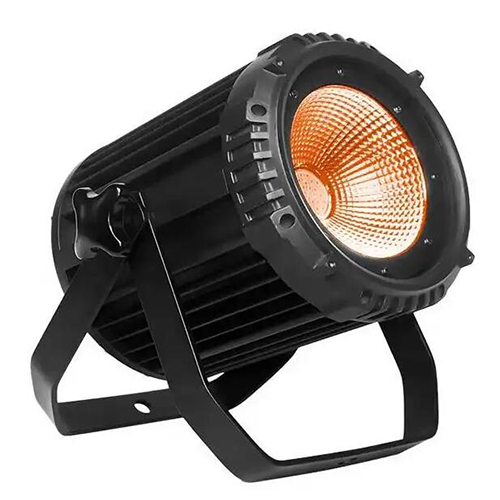

LED COB Cannon Wash,1X100W WW,30°,IP20,Black Shell

Electrical
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 100W

Optics
▪ Beam angle: 30° (60° optional)
▪ Reflector material: aluminum
▪ Parabolic reflector with high luminous efficiency
▪ 16 bit smooth dimming

Color System
▪ Warm White, 2800k-3200k

Effects
▪ Strobe: 1-25Hz
▪ Dimming : 0% – 100%
▪ Built-in strobe macro and speed adjustable
▪ Flicker free (refresh rate >4K Hz)

Control and Programming
▪ Control mode: DMX, Master/Slave
▪ DMX Channels: 3 CH
▪ Onboard programming functionality enables programming without external DMX controller
▪ Setting and addressing: 4-digit LED

Connections
▪ Data in/out: XLR 3Pin (XLR 5Pin is optional)

Cooling System
▪ Heatsinks in aluminum
▪ Cooling: natural convection (no fan, no noise)

Work Enviroment
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): 5° C

Safety Devices
▪ Electronic protection against short circuit
▪ With one eye bolt at the rear

Construction
▪ Housing: die-cast aluminium head + aluminum alloy body
▪ Color: Black
▪ Housing surface treatment: baking finished
▪ Protection rating: IP20

Mechanical Specification
▪ Length: 260 mm
▪ Width: 190 mm
▪ Height: 300 mm

Weight
▪ Net Weight: 5.50 kg

Accessories
▪ Power input cable: 1.0mm2, PVC sheath, length 1.4mtr
▪ Power cable sheath material: PVC
▪ DMX cable excluded (optional)
▪ Safety cable excluded (optional)
▪ Barndoor excluded (optional)
