ELECTRICAL
▪ AC power: 100-240V, 50/60 Hz
▪ Typical total power consumption: 500W
OPTICS
▪ Light source: 16X30W RGBA 4IN1
▪ Beam Angle：62°
▪ Field Angles：87°
▪ Minimum LED lifetime: 50 000 hours (to >70% luminous output)
▪ Light output: 6,809 LUX 633 FC @3.3′ (1m) (Full On)
DYNAMIC EFFECTS
▪ Full Pixel Control with Pixel Flip Modes
▪ RGB+ Dynamic Amber Channel Mode
▪ 16-bit Dimming and Variable Dimming Curve Modes
▪ High Speed Electronic Shutter and Strobe
▪ Adjustable LED Refresh Rate Frequency and Gamma
▪ Flicker Free Operation for Broadcast TV and Film
CONTROL AND PROGRAMMING
▪ Control options: DMX512
▪ Control mode: DMX, RDM, Kling-NET, and Art-NET Protocol Support
▪ DMX channels: 14CH
▪ Adjustable Refresh Rate (900-25,000 (Hz)
▪ Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
▪ 4 Button OLED Menu Control Display
CONSTRUCTION
▪ Housing: streching aluminium
▪ Housing surface: baking finished treatment
▪ Color(s): black (white optional)
▪ Protection rating: IP65
INSTALLATION
▪ Fixture-to-Fixture Interlocking Alignment Pins/Locks
▪ With Wired Digital Communication Network

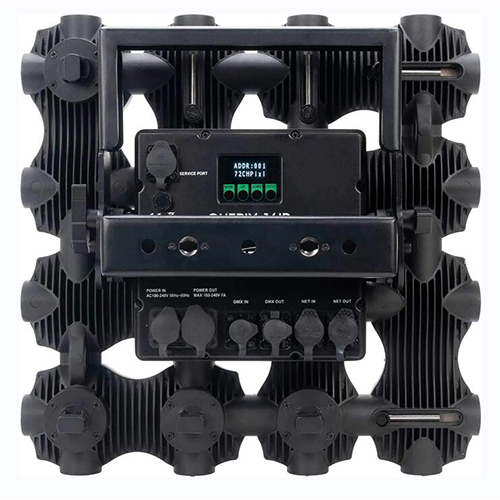

CONNECTIONS
▪ AC power in/thru: IP65 Power In/Out
▪ IP65 5pin DMX, RJ45 Ethernet In/Out
THERMAL
▪ Cooling: natural convection, No Fans for Noise-Sensitive Application
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
PHYSICAL
▪ Length: 440 mm
▪ Width: 206 mm
▪ Height: 440 mm
▪ Weight: 15.0 kg
ACCESSORIES
▪ Power cable:included
▪ DMX cable:included
▪ Mounting bracket: included (2pcs/pair)
▪ Safety cable: not included (optional)
