LMHWZO-1940A1(4IN1)B

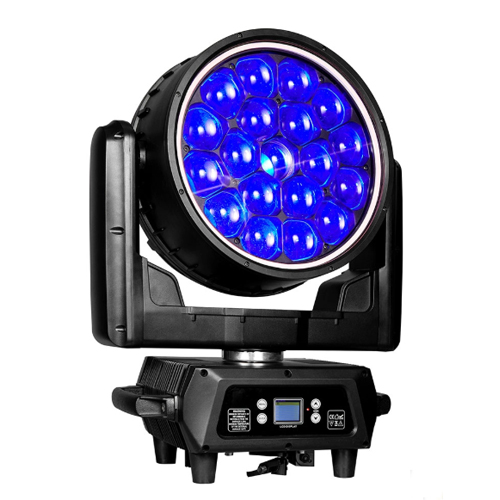

LED Moving Head Wash Zoom Outdoor, 19X40W RGBW 4IN1, 3.5-50°, IP65, Black Shell

ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Color Temperature : 6500K
▪ Beam Angle: 3.5-50°
▪ Power consumption: 640W

OPTICS
▪ Light Source: 19X40W RGBW 4IN1
▪ Drive Mode: Constant Current

COLOR SYSTEM
▪ Color Mixing: RGBW 4in1

DYNAMIC EFFECTS
▪ Pan and Tilt: Pan: 540°/ 360°, Tilt: 270°
▪ Pan/Tilt Resolution: 8/16 bit
▪ Dimmer: Electronic
▪ Shutter/Strobe: Electronic
▪ Zoom: Motorized
▪ Strobe Rate: 0 to 20 Hz
▪ Zoom: Motorized
▪ Focus: Electronic
▪ Strobe Rate: 0 to 20 Hz
▪ Color Temperature Presets: Yes
▪ Dim Curves: 4

CONSTRUCTION / PHYSICAL
▪ Dimensions: 434X532X298 mm
▪ Weight (single unit):22.0kgs
▪ Exterior Color: Black
▪ Housing Material: Aluminium Die Casting
▪ Display: LCD

CONNECTIONS
▪ Power In/Out: Powercon
▪ Cable Length (power): 1M
▪ Signal Connection: 3pin (5pin optional)

CONTROL
▪ Control Protocol: DMX512/mater-Slave/Auto Run/Music
▪ DMX Channels: 19/27 CH

COOLING SYSTEM
▪ Cooling:  with 2 slient fan,fans’ speeds adjustable

WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating

CERTIFICATIONS / QUALIFICATIONS
▪ CE
▪ IP Rating: IP65 (outdoor use)

WHAT’S INCLUDED
▪ Power cable 1 pc
▪ Signal cable 1pc
▪ Hanging omega bracket included (2pcs/pair)
▪ Safety cable excluded

OPTIONAL ACCESSORIES
▪ Clamps
▪ Flightcase
