LMPSZ60-925A1(2IN1)B

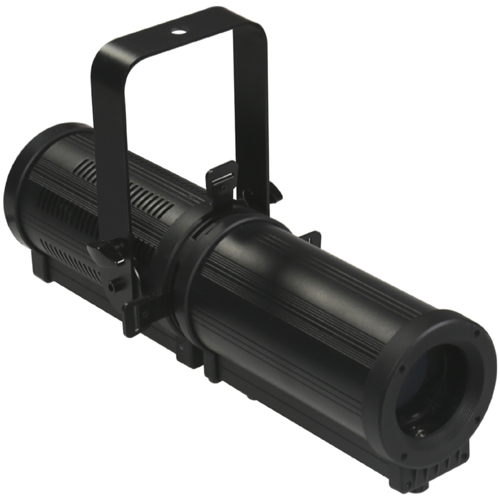

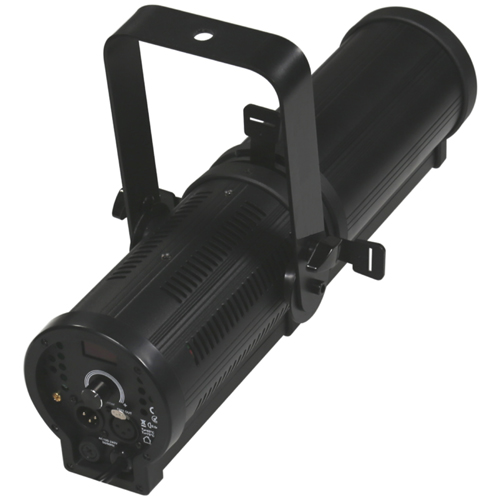

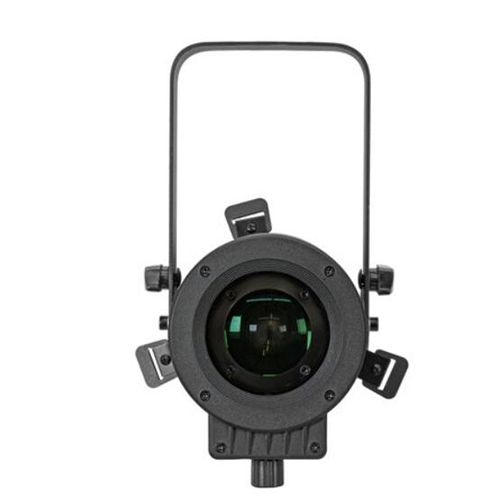

LED Mini Profile Spot Zoom, 60W, 9°- 25° , 3200K+5600K,IP20, Black Shell

LIGHT SOURCE
▪ LEDs: COB 60W, cool white + warm white
▪ Color temp: 3200K +5600K
▪ Color rendering index(CRI): Ra>90
▪ Luminous flux: Max. 3800 lm
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
▪ Drive current (mA): Max. 1460

OPTICS
▪ Beam angle: 9°- 25°
▪ Flicker free (refresh rate >100K Hz)
▪ Light output (full Bright):
9° 8450Lux@2mtr; 1930Lux@4mtr
25° 2340Lux@2mtr; 765Lux@4mtr

COLORS
▪ Double color, warm white+cool white

EFFECTS
▪ 16 bit smooth dimming
▪ Electronic dimmer: 0-100% linear
▪ Electronic strobe: 1-20 flashes/sec
▪ PWM Dimming Frequency Adjust:
▪ Color Calibration System (CCS) to correct the color of each lamp

CONTROL AND PROGRAMMING
▪ Control mode: RDM; DMX512; HSIC; Master/Slave; Stand-alone
▪ Onboard programming functionality enables programming without external DMX controller
▪ Setting and addressing: OLED

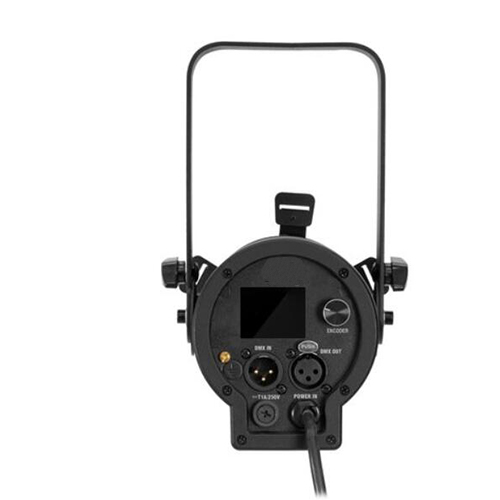

▪ DMX Data In/Out: XLR 3Pin (XLR 5Pin is optional)
▪ DMX Channel: 1/4CH

PAN-TILT
▪ Tilt: -135º~+135º

BODY
▪ Housing: Aluminum
▪ Housing color: black (white optional)
▪ Housing surface treatment: baking finished

POWER SUPPLY
▪ Power consumption: Max. 60W
▪ Auto switching power supply unit
▪ Power supply: AC100V-240V, 50/60Hz (auto-ranging)
▪ Power In/Out: 3Pin waterproof, daisy chain
▪ Power linking: up to 7units@120V and 14units@230V

COOLING & THERMAL MANAGEMENT
▪ Thermal management system ensures long life of LEDs
▪ Automatic switch off light source in case of overheating or failed operation of cooling system
▪ Heatsinks in aluminum for LED source
▪ Cooling: 1 pc silent fan

SAFETY DEVICES
▪ Power failure memory
▪ Electronic protection against short circuit
▪ with safety chain through holes at the yoke

RIGGING
▪ with single mounting yoke

ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temp: -20°C-45°C
▪ Dimensions(mm): L417 x W117 x H155 (with yoke)
▪ Net weight: 3.2kgs

ACCESSORIES
▪ Power input cable included, length 1.0mtr
▪ Power cable: 0.75mm2, PVC
▪ DMX cable not included (optional)
▪ Safety cable not included (optional)
