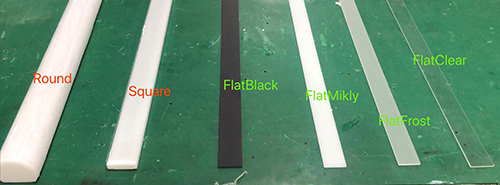

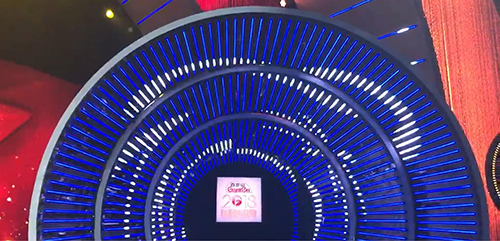

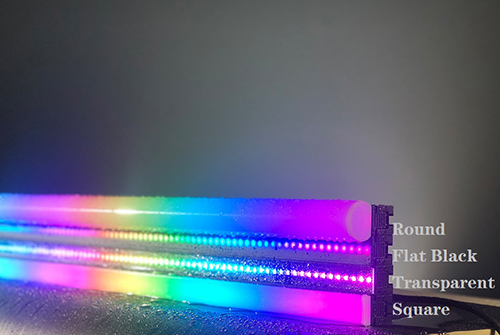

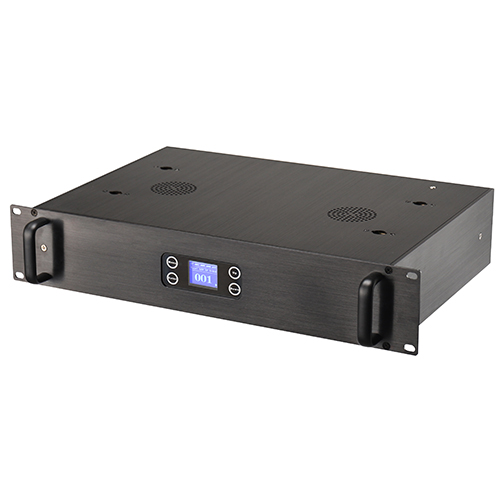

LED Pixel BarLED Pixel BarLED Pixel BarLED Pixel Barcontrol boxLENScovereffect

LPB-80(3IN1)A1B-FM

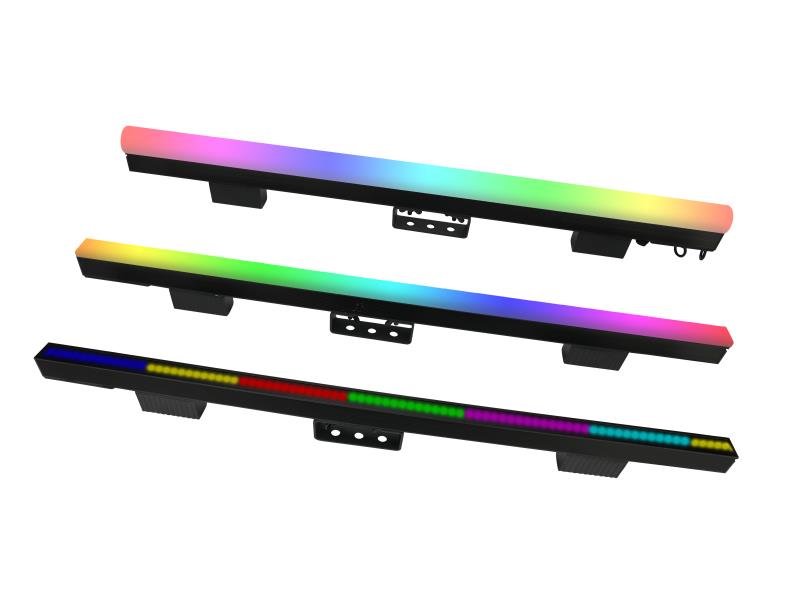

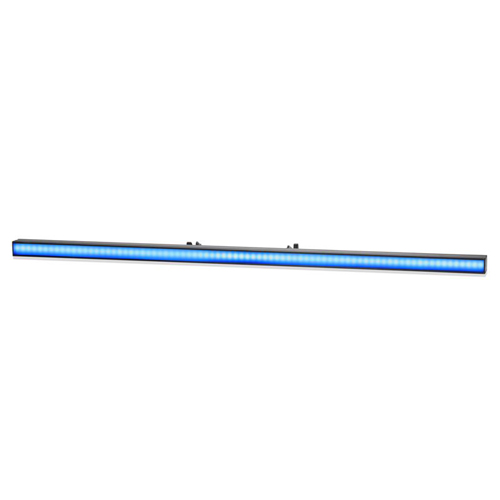

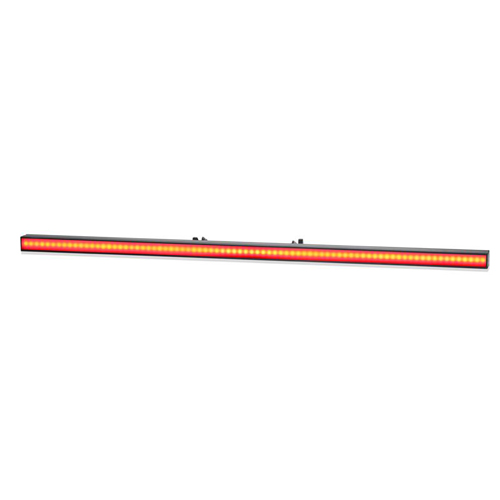

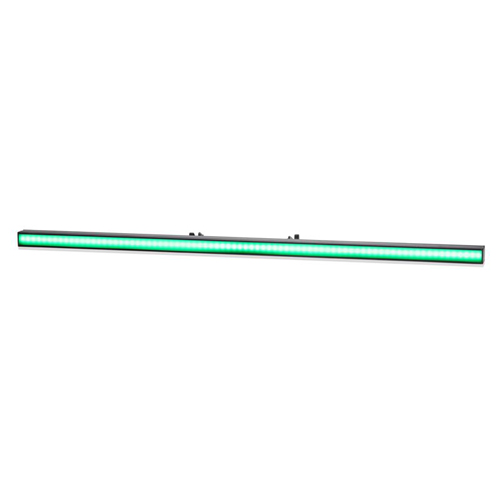

LED Pixel Bar, 80 SMD5050 3IN1, 120°,IP20, Flat milky LENs

ELECTRICAL
▪ AC power: 100-240 V nominal, 50/60 Hz
▪ Typical total power consumption: 25 W

OPTICS
▪ Light source: 80 SMD5050 3IN1
▪ Beam Angle:120º
▪ Minimum LED lifetime: 50 000 hours (to >70% luminous output)
▪ Luminous flux: black cover = 206,95 NIT

DYNAMIC EFFECTS
▪ Color mixing: RGB 3IN1
▪ Electronic dimming: 0 – 100%

CONTROL AND PROGRAMMING
▪ Control options: DMX512,Art-Net,Kling-Net, Auto,Sound Active
▪ DMX channels: 10/55/480
▪ DMX address setting: Control panel with LED display
▪ Stand-alone programming: Control panel with LED display

CONSTRUCTION
▪ Housing: Aluminum+Plastic
▪ Color(s): Black
▪ Protection rating: IP20

INSTALLATION

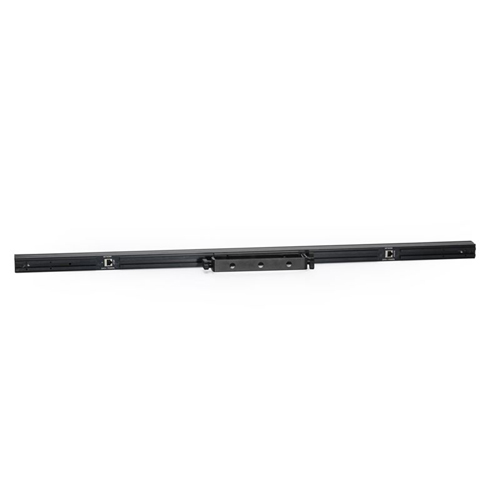

▪ Mounting: single bracket, surface for truss mount
▪ Orientation: Any
▪ Location: Indoor

CONNECTIONS
▪ AC power in/thru: PowerCon
▪ DMX data in/thru: 3-pin XLR (5-pin XLR Optional)

THERMAL
▪ Cooling: Convection
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

PHYSICAL
▪ Length: 1000 mm
▪ Width: 35 mm
▪ Height: 117 mm
▪ Weight: 1.5 kg

APPROVALS
▪ CE
