Optical
▪ Light source：1x100W COB Warm/Cool White LED (3000K/4000K/5700K)
▪ Beam Angle： 11°-35°
▪ Life expectancy: rated at 50,000 hrs.
▪ LUX: 3000K LED Lux@2m 29000(11˚); 21000 (15˚); 11500 (20˚); 7800 (25˚); 5600 (30˚);4400 (35˚)
LUX: 4000K LED Lux@2m 33000(11˚); 25400 (15˚); 12900 (20˚); 8800 (25˚); 6100 (30˚);4800 (35˚)
LUX: 5700K LED Lux@2m 34000(11˚); 27000 (15˚); 13700 (20˚); 9200 (25˚); 6400 (30˚);5100 (35˚)
▪ CRI: 90
Electrical
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 115W
Color System
▪ Color Temperature: 3000K/4000K/5700K
Effects
▪ Color: white
▪ Strobe: 1-25 Hz
▪ Dimming : 0-100% linear

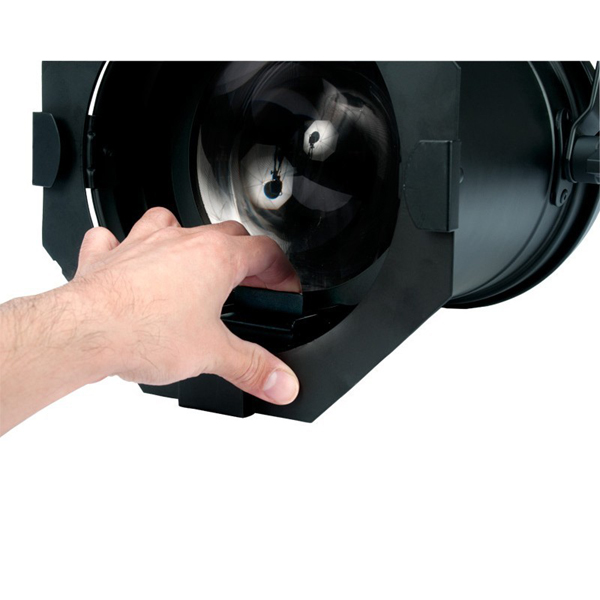

▪ Beam Angle： 11°-35°(stepless manual zoom)
Control and Programming
▪ Control Mode: DMX/Master-Slave
▪ DMX channels: 1CH/2CH/3CH
▪ Display: LED

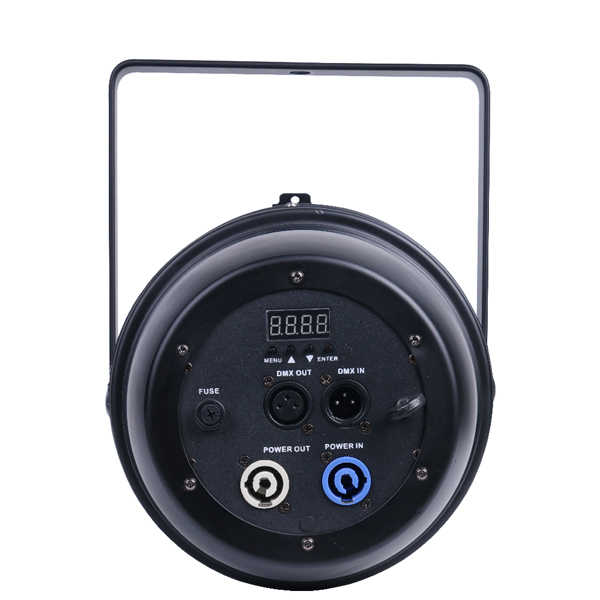

Connections
▪ Data in/out:3-pin （5-pin XLR optional)
▪ Power in/out: PowerCon
Cooling System
▪ Cooling: slient fan
Work Enviroment
▪ Maximum ambient temperature (Ta max.): 60° C
▪ Minimum ambient temperature (Ta min.): -40° C
Construction
▪ Housing: Aluminum
▪ Color: black (white optional)
▪ Housing surface treatment: metal baking finished
▪ Protection rating: IP20
Mechanical Specification
▪ Length: 491 mm
▪ Width: 275 mm
▪ Height: 224 mm
Weight
▪ Weight:3.4kg
Accessories
▪ Power cable included, length 1.0mtr
▪ DMX cable included
Approvals
▪ CE
