LSP-36005A1(WW)B

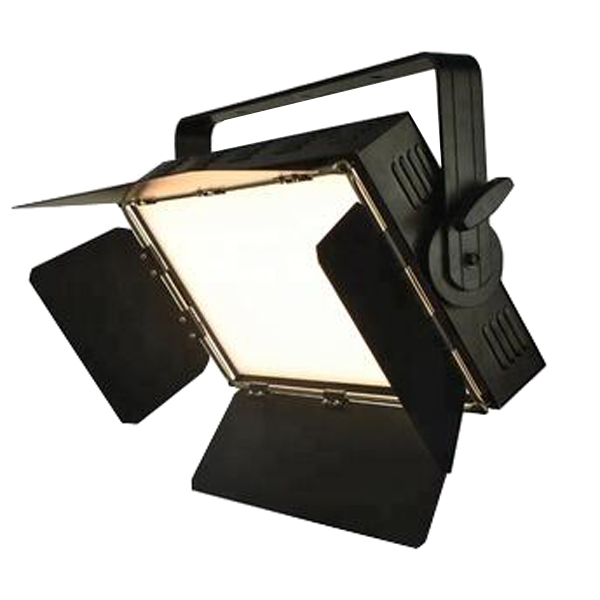

LED Studio Panel, 360X0.5W, Warm White,IP20, Black Shell

Categories: .

LIGHT SOURCE
● LEDs: 360pcs 0.5W, SMD2835, warm white
● LEDs brand: Edison, origin in Taiwan
● Color temp: 3000-3200K
● Color rendering index(CRI): Ra>93
● Luminous flux: Max. 18,900 lm
● LEDs average lifespan: >50,000hrs
● Drive mode: constant current
● Drive current (mA): 150

OPTICS
● Beam angle: 170°
● Light ouput (full Bright): 347Lux@4mtr
● Flicker free (refresh rate >4KHz)
● Suitable for TV applications and all video recorded events
● 16bit smooth dimming
● Dimming curve: 4 types
● Optic lens: single big acrylic plate

COLORS
● Single color, warm white

EFFECTS
● Electronic dimming: 0-100% linear
● Electronic strobe: 1-25 flashes/sec.
● Built-in strobe macro and speed adjustable

CONTROL MODE
● Control protocol: DMX512
● Control mode: DMX, master/slave
● DMX channels: 3CH
● DMX data In/Out: XLR 3Pin (XLR 5Pin optional)

DISPLAY & MENU SETTING
● Display: 1.7inch blue LCD backlit
● Setting and addressing via 4-menu-button
● Display always ON
● Menu language: English

TILT
● Tilt (Yoke): ±180o

BODY & HOUSING
● Housing: steel
● Housing color: black (white optional)
● Housing surface treatment: baking finished

POWER SUPPLY
● Power supply: AC100V-240V; 50/60Hz
● Power consumption: Max. 126W
● Auto switching power supply unit, 160W, PFC>0.92
● Power In/Out: IEC, daisy chain
● Power linking: up to 4units@120V; 8units@230V

COOLING
● Entire casing as heat sink
● Cooling: natural convection (no fan, no noise)

SAFETY PROTECTION
● Fuse: 3A 120V, 1.6A 240V
● Electronic protection against short circuit
● Input signal isolating protection
● with safety chain through holes at the rear

RIGGING & MOUNTING
● Single mounting yoke

ENVIRONMENT AND PHYSICAL
● IP rating: IP20
● Environment temperature: -20°C-40°C
● Dimensions(mm): W476 x D85 x H268 (without yoke)
● Dimensions(inch): W18.74 x D3.35 x H10.55 (without yoke)
● Dimensions(mm): W580 x D95 x H307 (with yoke)
● Dimensions(inch): W22.83 x D3.74 x H12.09 (with yoke)
● Net weight: 5.8kg (12.80lb)

ACCESSORIES
● Power input cable: 0.75mm2, length 1.2mtr
● Power cable sheath material: PVC
● DMX cable not included (optional)
● Safety cable not included (optional)
● Barndoor included
