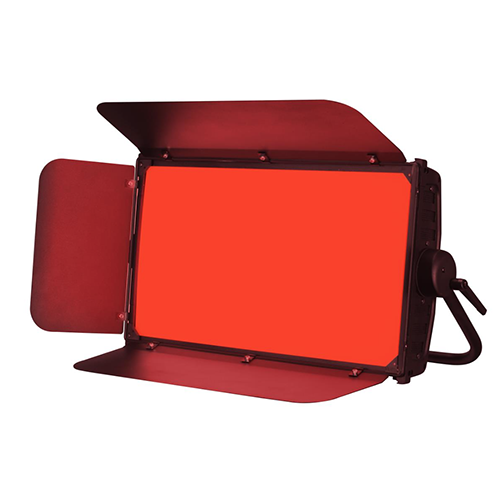

red

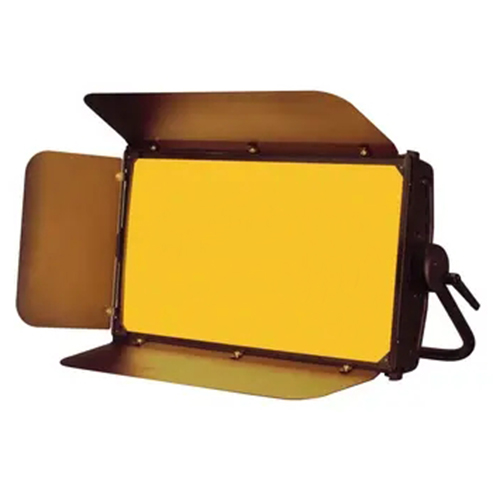

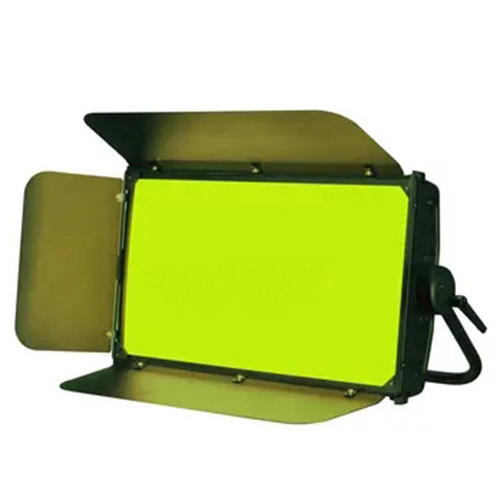

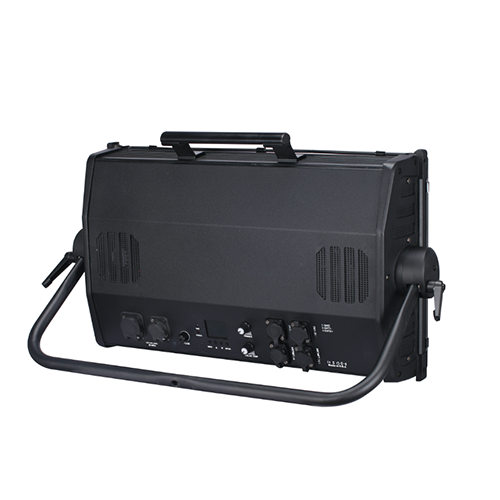

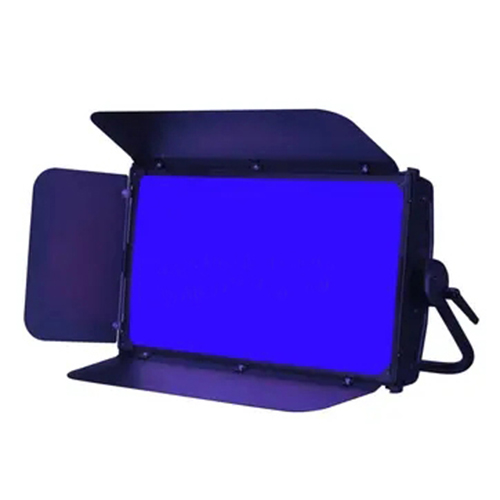

reargreenblueAmberlemon

LSP-8005A1(5IN1)B

LED Studio Panel, 800X0.5W, RGBAL 5IN1,IP20, Black Shell

Categories: .

LIGHT SOURCE
● LEDs: 800pcs*0.5W, RGBAL 5in1 With CCT
● Color temp: 2700K-8000K
● Color rendering index(CRI): Ra>95
● LEDs average lifespan: >50,000hrs
● Drive mode: constant current

OPTICS
● Beam angle: 180°
● Flicker free (refresh rate >4KHz)
● Suitable for TV applications and all video recorded events
● 16bit smooth dimming
● Dimming curve: 4 types
● Optic lens: single big acrylic plate

COLORS
● RGBWL 5IN1

EFFECTS
● Electronic dimming: 0-100% linear
● Electronic strobe: 1-25 flashes/sec.
● Built-in strobe macro and speed adjustable

CONTROL MODE
● Control protocol: DMX512
● Control mode: Manual, Master slave, DMX, RDM, Art-net
● DMX channels: 10CH
● DMX data In/Out: XLR 3Pin (XLR 5Pin optional)

DISPLAY & MENU SETTING
● Display: LCD with touch screen
● Setting and addressing via 4-menu-button
● Display always ON
● Menu language: English

TILT
● Tilt (Yoke): ±180°

BODY & HOUSING
● Housing: steel
● Housing color: black (white optional)
● Housing surface treatment: baking finished

POWER SUPPLY
● Power supply: AC100V-240V; 50/60Hz
● Power consumption: Max. 450W
● Auto switching power supply unit, 300W, PFC>0.92
● Power In/Out: Powercon

COOLING
● Entire casing as heat sink
● Cooling: natural convection (no fan, no noise)

SAFETY PROTECTION
● Fuse: 3A 120V, 1.6A 240V
● Electronic protection against short circuit
● Input signal isolating protection
● with safety chain through holes at the rear

RIGGING & MOUNTING
● Single mounting yoke

ENVIRONMENT AND PHYSICAL
● IP rating: IP20
● Environment temperature: -20°C-40°C
● Dimensions(mm): W657 x D415 x H127 (with yoke)
● Net weight: 9.8kgs

ACCESSORIES
● Power input cable: 0.75mm2, length 1.2mtr
● Power cable sheath material: PVC
● DMX cable not included (optional)
● Safety cable not included (optional)
● Barndoor included
