Electrical
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 40W
Optics

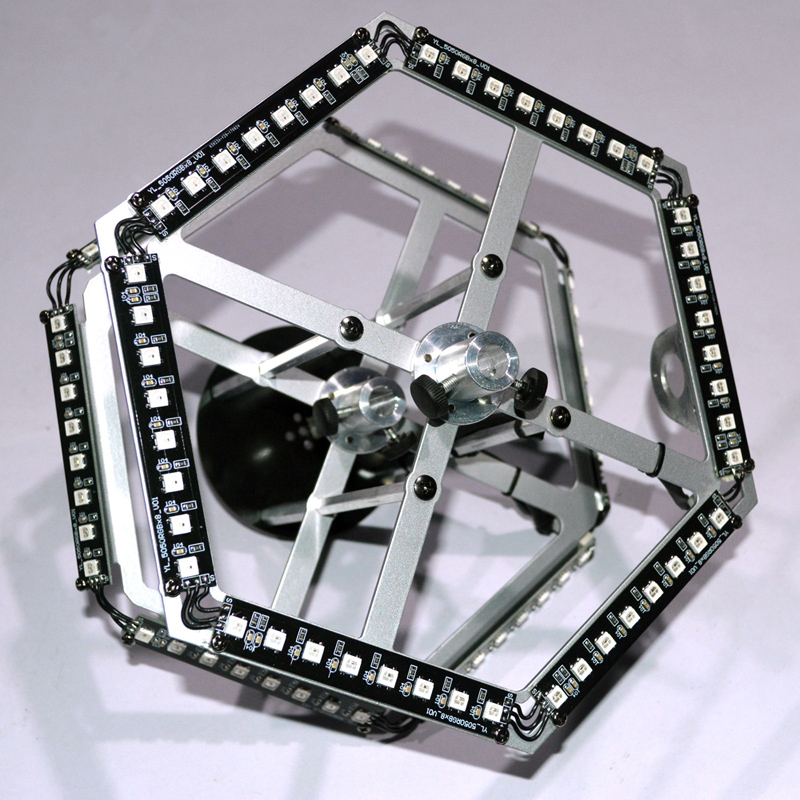

▪ LED:114X0.2W SMD5050 3IN1
▪ Color rendering index(CRI): Ra>85
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
Color System
▪ Color Mixing: RGB (3IN1)

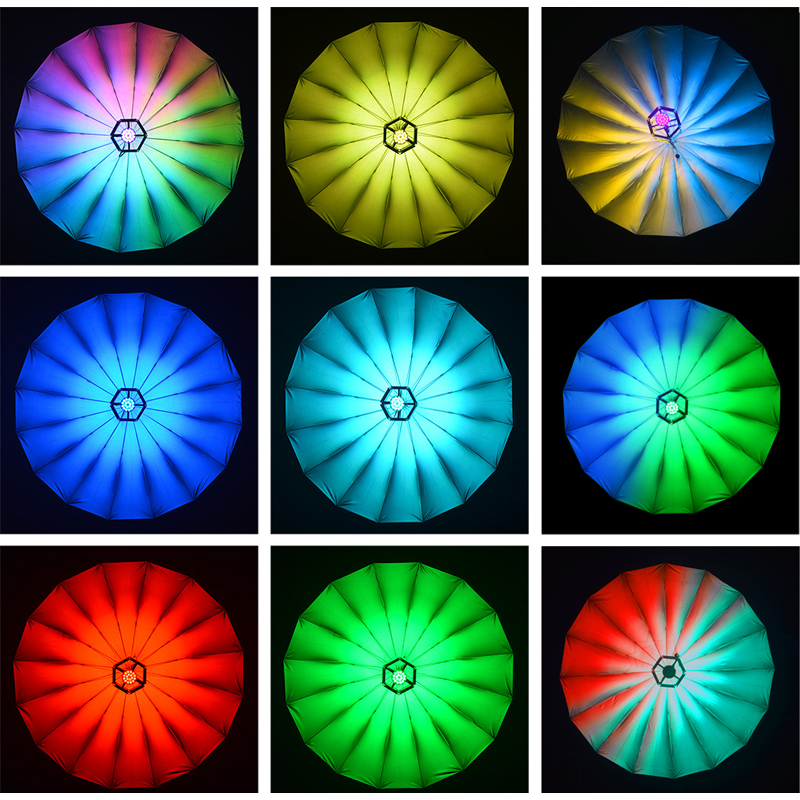

Effects
▪ Strobe: 1-25Hz
▪ Dimming : 0% – 100%
Control and Programming
▪ DMX Channel Mode:6/24 CH
▪ Control Mode:DMX/Master-slave/Sound active/Auto Run
Connections
▪ Data in/out:3-pin XLR (5-pin optional)
Work Enviroment
▪ Maximum ambient temperature (Ta max.): 60° C
▪ Minimum ambient temperature (Ta min.): -40° C
Construction
▪ Housing: Metal Construction
▪ Color: Black
▪ Protection rating: IP20
Mechanical Specification
▪ Length: 1020 mm
▪ Width: 285 mm
▪ Height: 270 mm
▪ Diameter: 1400 mm
Weight
▪ Weight: 2.1kgs
Accessories
▪ Power cable included, length 1mtr
▪ DMX cable included, length 1mtr

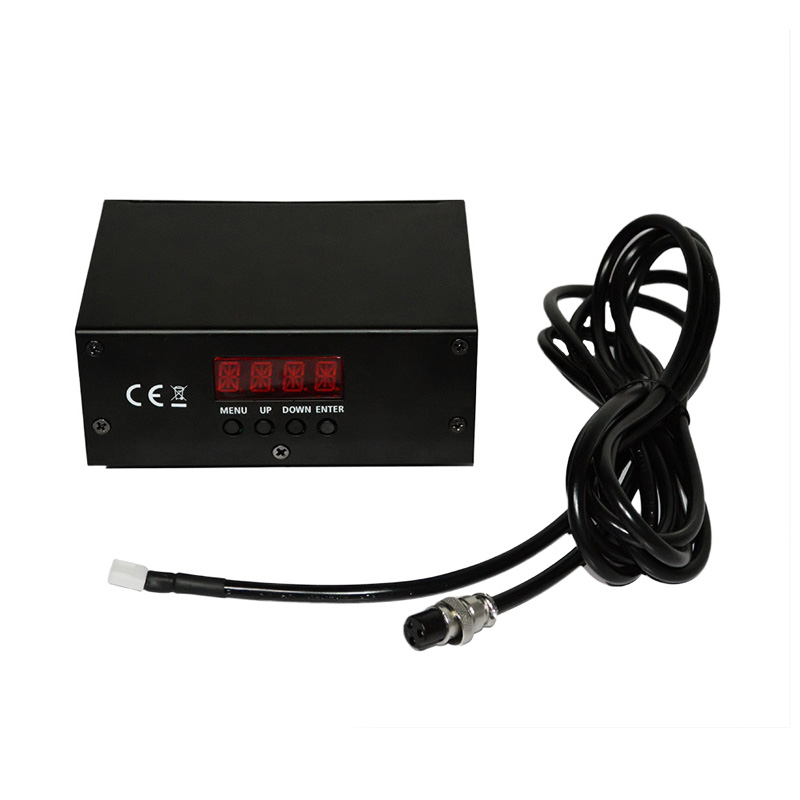

▪ Control box included
Approvals
▪ CE
