LWBP-1215A1(6IN1)B

LED Wireless Battery Par, 12X15W RGBWA+UV 6IN1, 25°, IP65, Black Shell

LIGHT SOURCE
LEDs:    12pcs 15W, RGBWA+UV 6in1
Color temp of white LED:    7000-7200K
CRI:    Ra>72
Luminous flux:    Max. 3,180 lm
Drive mode:    constant current
4Drive current:    400mA

OPTICS
Beam angle:    25° (15° , 45° optional)
Light output (full Bright):    @25°: 510Lux@4mtr
Optic lens:    acrylic, effective diameter 40mm

DIMMER & STROBE
Electronic dimming:    0-100% linear, 16bit smooth dimming
Refresh rate:    >3K Hz (Flicker free) , suitable for TV applications and all video recorded events
Electronic strobe:    1-20 flashes/sec.
Built-in strobe macro:    Built-in strobe macro and speed adjustable

EFFECTS
Built-in color macro:    color fade in & out; color jumping
Built-in Demo:    9 auto run programmes, speed adjustable

CONTROL MODE
Control protocol:    DMX512
Control mode:    DMX, Wireless, IR remote, Autorun, Master/Slave, Sound-activate
DMX channels:    6/10CH
DMX data In/Out:    XLR 3Pin (XLR 5Pin optional)

DISPLAY & MENU SETTING
Display:    color LCD backlit
Setting and addressing:    via 4-menu-button
Menu language:    English

PAN-TILT
Tilt (support bracket):    ±180º

POWER SUPPLY
Power supply:    AC100V-240V; 50/60Hz
Power consumption:    Max. 42W
Battery:    lithium, 18650, DC12.5V
Battery group capacity:    10,000mAh
Fixture working time:    4 hours @full power; 15 hours @auto mode; 20 hours @single color
Battery charge time:    4 hours
Power In/Out:    waterproof, Powercon daisy chain

COOLING
Heat sink:    Entire casing as heat sink
Cooling:    natural convection (no fan, no noise)

SAFETY PROTECTION
Electrical protection:    Electronic protection against short circuit
Isolating protection:    Input signal isolating protection

RIGGING & MOUNTING
Mounting bracket:    1pc

ENVIRONMENT AND PHYSICAL
IP rating:    IP65
Dimensions(mm):    W150 x D100 x H180
Dimensions(inch):    W5.90 x D3.94 x H7.09
Net weight:    3.6kg (7.94lb)

ACCESSORIES
Power input cable:    included, length 1.2mtr
DMX cable:    not included (optional)

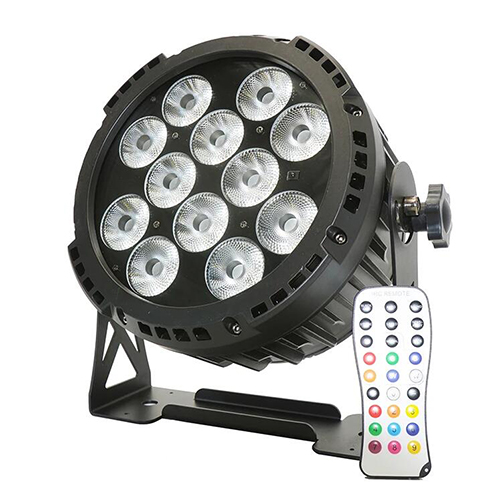

Infrared remote controller:    W5.90 x D3.94 x H7.09
Safety cable:    not included (optional)
