LFAZ-300A1(5IN1)B-1530

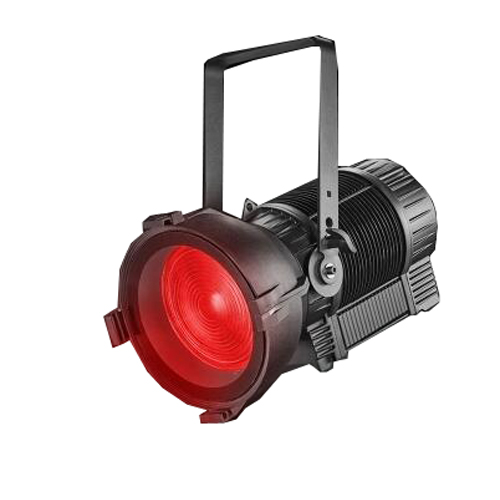

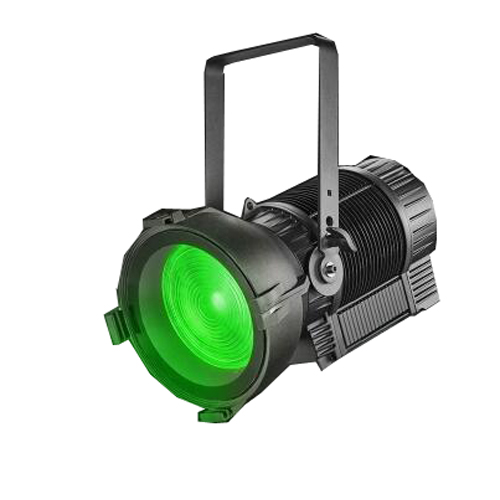

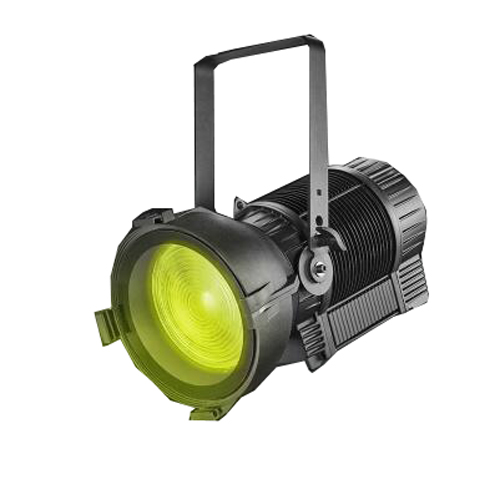

LED Fresnel Auto Zoom, 300W,15°-30°,RGBAL 5IN1,IP54, Black Shell

LIGHT SOURCE
▪ LEDs:300W, RGBAL 5IN1
▪ LEDs brand: Japan Import
▪ Color temp: 2700K-12000K
▪ Color rendering index(CRI): Ra>92
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current

OPTICS
▪ Beam angle: 15°-30°
▪ Flicker free (refresh rate >100K Hz)

COLORS
▪ RGBAL 5IN1

EFFECTS
▪ 16 bit smooth dimming
▪ Electronic dimmer: 0-100% linear
▪ Electronic strobe: 1-20 flashes/sec.

CONTROL AND PROGRAMMING
▪ Control Protocol: RDM / DMX
▪ Control System: DMX, Auto run and Master/Slave
▪ DMX Channels: 6/12 CH
▪ Setting and addressing: LCD with touch screen
▪ DMX Data In/Out: XLR 3Pin (XLR 5Pin is optional)

PAN-TILT
▪ Tilt: -135º~+135º

BODY
▪ Housing: Aluminium
▪ Housing color: Black (white optional)
▪ Housing surface treatment: baking finished

POWER SUPPLY
▪ Power consumption: Max. 250W
▪ Auto switching power supply unit
▪ Power supply: AC100V-240V, 50/60Hz (auto-ranging)

COOLING & THERMAL MANAGEMENT
▪ Thermal management system ensures long life of LEDs
▪ Automatic switch off light source in case of overheating or failed operation of cooling system
▪ Heatsinks in aluminum for LED source
▪ Cooling: forced air convection, with 1 slient fan

SAFETY DEVICES
▪ Power failure memory
▪ Electronic protection against short circuit
▪ With safety chain through holes at the yoke

RIGGING
▪ with single mounting yoke

ENVIRONMENT AND PHYSICAL
▪ IP rating: IP65
▪ Environment temp: -20°C-45°C
▪ Dimensions(mm): L580 x W325 x H320
▪ Net weight: 8.5kgs

ACCESSORIES
▪ Power input cable included, length 1.0mtr
▪ Power cable: 0.75mm2, PVC
▪ DMX cable included
▪ Safety cable (optional)
▪ Barndoor included
