ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Beam Angle: angle：7°-45°
▪ Power consumption: 550W
OPTICS

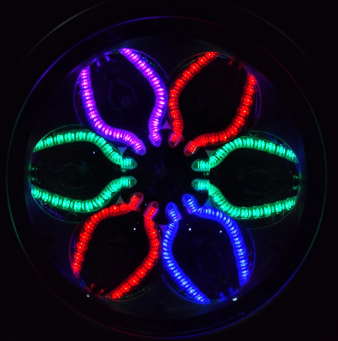

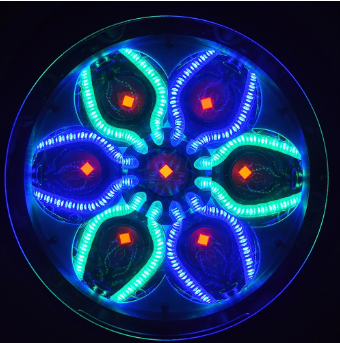

▪ Light Source: 7x 60W（4in1 RGBW）high brightness LEDs；Filament Aura: 12x 3W (3in1 RGB) LED filament
▪ Optics lens：high brightness PMMA lens
▪ Life Span：50000H, low power consumption, energy saving and environmental protection
COLOR SYSTEM
▪ Color: RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
▪ Tungsten Emulation Option.
▪ Virtual Color Wheel.
MOVEMENT
▪ Pan/Tilt movement：: Pan : 540° ,Tiit : 270°
▪ Smooth and accurate positioning
▪ Adjustable Pan and tilt speed
▪ Pan and Tilt with error correction function
▪ The scanning position can be memorized and it will be reset automatically after no expected movement
▪ 16bit fine
DYNAMIC EFFECTS
▪ Strobe effect：1-25HZ with multiple strobe effects
▪ Dimming：Four dimming effect (Linear/Square/I Sequare/Scurve) 0-100% linear dimming
▪ Optical effect: High precision integrated structure PMMA lens, high transparency quartz glass light pipe,creating a softer dyeing range. Latest Aura filament pixel effect
▪ Macro effects: Multiple built-in macros with control of foreground color, background color, speed and direction. 3D video mapping of fixture beam pixels and/or Aura filaments. High-speed pan, tilt and zoom
CONSTRUCTION / PHYSICAL
▪ Dimensions: 386X291X533mm
▪ Weight (single unit):19.5kg
▪ Exterior Color: Black
▪ Housing Material: metal die-casting aluminum shell and fire-resistant and UV resistant engineering plastic
▪ Display: 1.77-inch OLED screen, Chinese and English menu, anti-interference photoelectric signal isolation system, waterproof intelligent touch key (screen activation password 1111)
▪ 4 touch buttons
CONNECTIONS

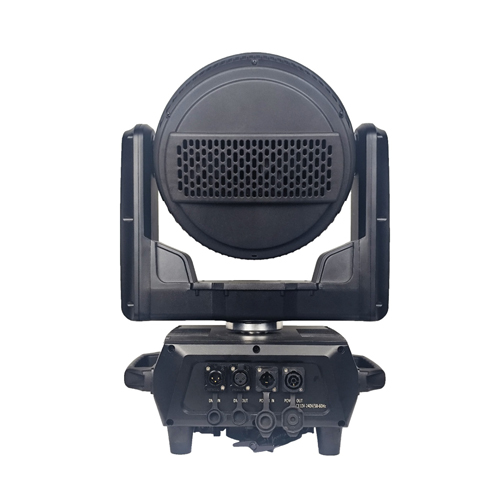

▪ Power In/Out: Powercon
▪ Cable Length (power): 1M
▪ Signal Connection: 5-pin (3-pin optional)
CONTROL
▪ Control Protocol: DMX512，Auto，RDM, Art-Net (Support for additional installation)
▪ DMX Channels: 21/30/36/57/78/93CH
▪ Setting and Addressing：RDM
COOLING SYSTEM
▪ Fan heat dissipation (the fan speed changes as per the temperature change)
▪ LED temperature detectio snystem to protect the service life of LED chip
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
QUALIFICATIONS
▪ IP Rating: IP65 (outdoor use)
WHAT’S INCLUDED
▪ Power cable 1 pc
▪ Signal cable 1pc
OPTIONAL ACCESSORIES
▪ Clamps
▪ Flightcase
