ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Beam angle：Cell 6°,Dot 120°
▪ Power consumption: 900W
OPTICS
▪ Light Source: 21X40W, RGBW 4IN1,, 128x1W RGBA LEDs
▪ Drive Mode: Constant Current
COLOR SYSTEM
▪ Uniform RGB mixing color
▪ LEDs pixel control to create a more gorgeous chasing effect
▪ White balance
▪ Static color set up
EFFECTS
▪ Strobe effect: 0-20HZstrobe、Ramp up and down strobe、Ramp up strobe、Ramp down strobe、Random strobe, 5s-1s break strobe
▪ Dimming:0-100% 16bit dimming
▪ Each LED can be controlled seperately
▪ Dimming way：4 dimming speed
▪ Stand-alone mode: Electronic frost、Colour jump、colour fade、Auto、Slave、Macro colour，Static colour setting、Rainbow、Auto program
CONSTRUCTION / PHYSICAL
▪ Dimensions: 580x300x515mm
▪ Weight (single unit):17.2 kg
▪ Exterior Color: Black
▪ Housing Material: Aluminum die-cast

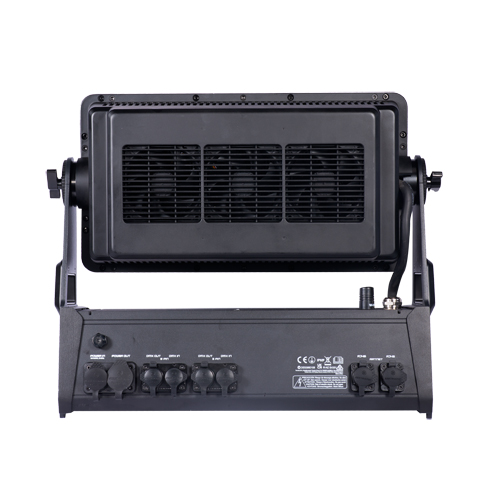

CONNECTIONS
▪ Power In/Out: IP65 Powercable
▪ Cable Length (power): 1M
▪ Signal Connection: 3-pin (5-pin optional)
CONTROL
▪ Control Mode: DMX512、ArtNet、sACN、Maser-Slave，W-DMX
▪ 3DMX channel modes：Signal control mode, dual-layer control mode, multi-layer control mode
▪ Display: OLED
COOLING SYSTEM
▪ Cooling: silent fan
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): 5° C
SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
QUALIFICATIONS
▪ IP Rating: IP65 (outdoor use)
WHAT’S INCLUDED
▪ Power cable 1 pc
▪ Signal cable 1pc
OPTIONAL ACCESSORIES
▪ Clamps
▪ Flightcase
