LIGHT SOURCE
▪ LEDs: COB 60W, RGBW 4-in-1
▪ LEDs brand: Luminus, origin in USA
▪ Color temp: 6500K
▪ Color rendering index(CRI): Ra>72
▪ Luminous flux: Max. 1,200 lm
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current
▪ Drive current (mA): 2800
AUXILIARY LIGHT SOURCE
▪ LEDs: 12pcs 0.1W, SMD5050, RGB 3-in-1
OPTICS
▪ Beam Angle: Beam angle: 8°
▪ Light ouput (full Bright): 976Lux@10mtr
▪ Optic lens material: acrylic
▪ Optic lens effective diameter (mm): 60
COLORS
▪ Color Mixing: RGBW (4IN1)
▪ Aura color mixing: RGB
DIMMER & STROBE
▪ Electronic dimming: 0-100% linear
▪ 16bit smooth dimming
▪ Flicker free (refresh rate >4K Hz)
▪ 16bit smooth dimming
▪ Electronic strobe: 1-20 flashes/sec
▪ Built-in strobe macro and speed adjustable
EFFECTS
▪ Built-in color changing macro, speed adjustable
▪ Built-in 4 auto run programmes, speed adjustable
▪ Built-in 4 demo programmes, speed adjustable
EFFECTS (AUXILIARY LIGHT SOURCE)
▪ Built-in color changing macro, speed adjustable
▪ Built-in auto chasing programmes, speed adjustable

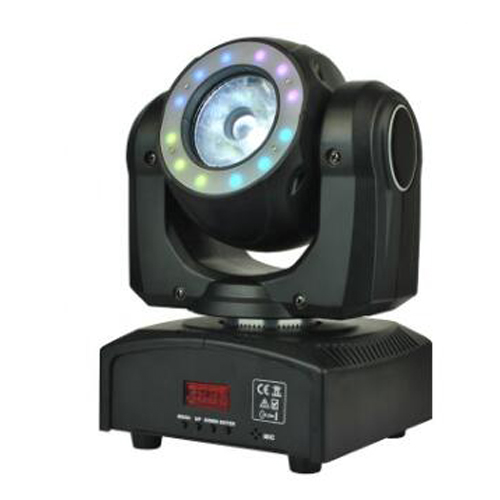

▪ 4-section color ring
CONTROL MODE
▪ Control protocol: DMX512
▪ Control mode: DMX, master/slave, auto, sound-activate
▪ DMX channels: 16/21CH
▪ Onboard programming enables programming without external DMX controller

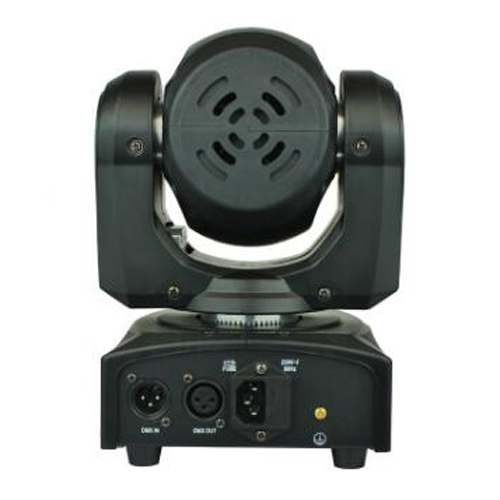

▪ DMX data In/Out: XLR 3Pin (XLR 5Pin optional)
DISPLAY & MENU SETTING
▪ Display: 4-digit LED
▪ Setting and addressing via 4-menu-button
▪ Menu language: English
▪ Display: with flip function (can be rotate through 180°)
▪ Display can be set via menu, either always ON or delay OFF
▪ Display auto OFF after 30sec no setting action
▪ Display fixture’s used time
▪ Display fixture’s software version
▪ Reset: via DMX and/or menu operate
PAN-TILT
▪ Pan: Max 525° (8 or 16 bit resolution)
▪ Tilt: Max 205° (8 or 16 bit resolution)
▪ User-selectable Pan/Tilt ranges
▪ Pan/Tilt motors: 2 phase
▪ Scan speed: Pan 1.5sec/525°; Tilt 1.0sec/205°
BODY & HOUSING
▪ Inner skeleton: module pressing high strength alloy
▪ Housing: ABS engineer plastic
▪ Housing surface treatment: baking finished
▪ Housing color: black (white optional)
POWER SUPPLY
▪ Power supply: AC100V-240V; 50/60Hz
▪ Power consumption: Max. 90W
▪ Auto switching power supply unit, 100W
▪ Power In: IEC
COOLING
▪ Heatsinks in aluminum
▪ Cooling: forced air convection, with 1 slient fan
SAFETY PROTECTION
▪ Fuse: 2A 120V, 1.6A 240V
▪ Electronic protection against short circuit
RIGGING & MOUNTING

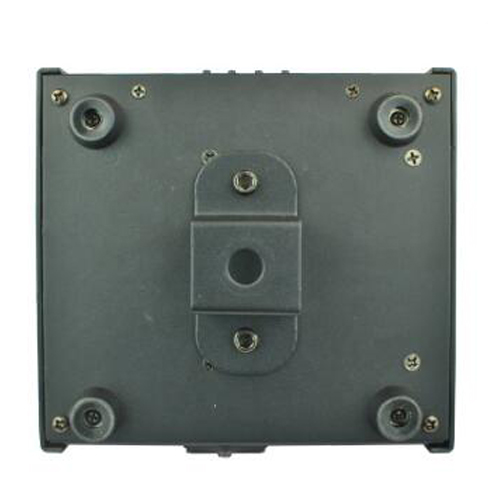

▪ 1pc omega bracket
▪ Four strong feet for better and stable flat placement
ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temperature: -20°C-40°C
▪ Dimensions(mm): W180 x D146 x H250 (head horizontal)
▪ Dimensions(mm): W180 x D146 x H240 (head vertical)
▪ Net weight: 2.65kg
ACCESSORIES
▪ Power input cable: 0.75mm2, length 1.2mtr
▪ Power cable sheath material: PVC
▪ Hanging omega bracket included (1pc)
▪ DMX cable excluded (optional)
▪ Safety cable excluded (optional)
