Electrical
▪ Power supply: Electronic auto-ranging
▪ Color Temperature : 3200k
▪ Beam Angle: 15°-55°
▪ Power consumption: 250W
▪ CRI: ≥90
Optics
▪ Light Source: 200W WW, 50,000 hours life expectancy
▪ Drive Mode: Constant Current
Color System
▪ Color Mixing: WW
Effects
▪ Dimmer: Electronic
▪ Shutter/Strobe: Electronic
▪ Zoom: Manual
▪ Focus: Electronic
▪ Strobe Rate: 0 to 20 Hz
▪ Dim Modes: 5
▪ Dim Curves: 4
CONSTRUCTION / PHYSICAL
▪ Dimensions: 520x315x320 mm
▪ Weight (single unit):8.4kgs
▪ Exterior Color: Black
▪ Housing Material: streching aluminium
CONNECTIONS
▪ Power In/Out: Powercon
▪ Cable Length (power): 1M
▪ Signal Connection: 3pin & 5pin
CONTROL
▪ Control Protocol: DMX
▪ DMX Channels: 4/5CH
Cooling System
▪ Cooling: forced air convection, with 1 slient fan,fans’ speeds adjustable
Work Enviroment
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
Safety Devices
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
CERTIFICATIONS / QUALIFICATIONS
▪ CE
▪ IP Rating: IP20 (indoor use)
WHAT’S INCLUDED

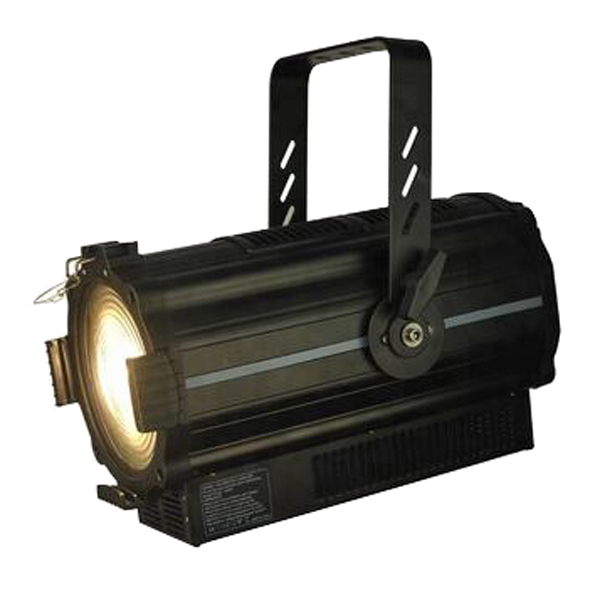

▪ LTWZ200-A1(WW)B
▪ Power cable 1 pc
▪ Signal cable 1pc
OPTIONAL ACCESSORIES
▪ Barndoor
▪ Clamps
▪ Flightcase
