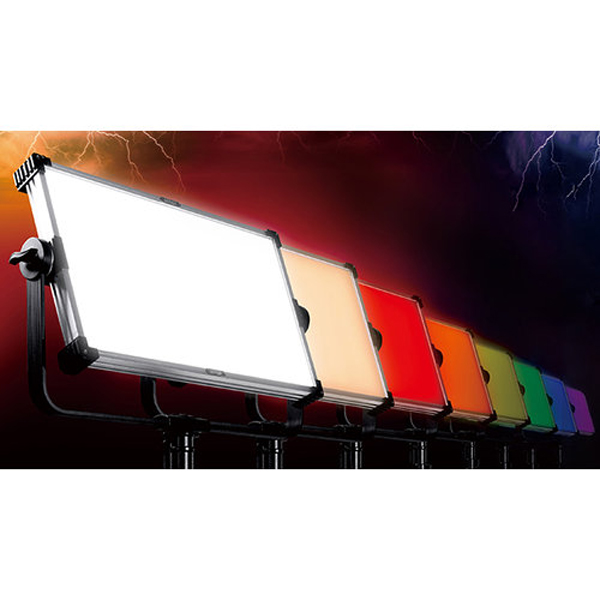

LED Studio Panel is a compact light weight LED luminaire designed for both studio and location use. Units feature tunable white color temperature control from 2700K to 10000K making it ideal for a wide range of lighting applications.

• Leds: 1200pcs 0.5W, Osram 2026, R240/G240/B240/W480
• LED Life Expectancy: Minimum 100.000 hours
• Drive Mode: Constant Current

• Beam Angle: 170°
• Flicker free (refresh rate >4K Hz)
• Color rendering: >93 Ra
• TLCI: >93 Ra
• Color Temperature: 2700-10000K

• Electronic dimmer: 0-100% linear
• Electronic strobe: 0-20 flashes/sec.

Control and programming
• Control mode: DMX
• Control Channels: 2/7CH
• Display: LCD

Power Supply:
• Power supply: Electronic auto-ranging
• Power Input Rating: 100-240 V AC, 50-60 Hz
• Power consumption: 320 W
• Input/Output Power connections: Powercon
• Input/Output Signal connections: 3p XLR ( 5p XLR optional)

• Housing: iron
• Housing color: black
• Housing surface treatment: baking finished

Safety Devices
• Power failure memory
• Electronic protection against short circuit

Work Enviroment
• Enviroment temperature: -25 °C -40 °C

Cooling System
• Cooling: silent fan

Internal protection
• IP rating: IP20

Mechanical Specification
• Length: 590 mm
• Width: 345 mm
• Height: 136 mm
• Weight: 11.6 kg

• CE

• Power input cable included, length 1.2mtr
• Power cable: 0.75mm2, PVC
• DMX cable included
• Safety cable not included (optional)
• Barndoor not included (optional)
