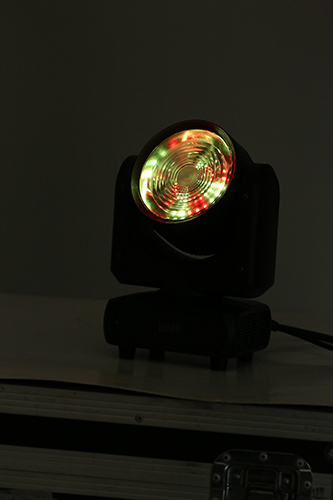

rearsideeffect 1effect 2effect 3


LED Mini Moving Head Wash, 1X100W,WW+CW, 24X0.2W RGB 3IN1 LED, IP20, Black Shell

• LEDs: 1X100W CW WW, 24X0.2W RGB LED
• LED Life Expectancy: Minimum 50.000 hours
• Drive Mode: Constant Current

• 0-100% linear led dimmer
• Beam angle: 8 ° (optional 24 °)

Photometric Data
• CW:  8°  2m@10500lux, 4m@2280lux, 6m@995lux, 8m@585lux
• WW: 8°  2m@7050lux, 4m@1530lux, 6m@670lux, 8m@394lux
• WW+CW: 8°  2m@16900lux, 4m@3680lux, 6m@1620lux, 8m@930lux

• Pan/tilt operation
• 16bit fine-tuning
• Smooth and precise positioning
• Pan:540°,Tilt:205°
• Pan and Tilt speed adjustable
• The scanning position can be memorized and will automatically reset when there is no expected operation
• Pan and Tilt with error correction function

• CW WW RGB background color

• DMX Chanle:19CH
• 2 control model :DMX512、master-slave
• Dimming: 0-100% 16bit dimming
• Background light effect: capable of chasing and running
• 0-20Hz flicker, pulse flicker, random flicker effect

• LED display screen operating

Control and programming
• Settings and Addressing: RDM
• Fan cooling (fan speed changes with temperature)
• LED temperature detection system to protect the lifespan of LED chip

Power Supply:
•Power supply: Electronic auto-ranging
•Power Input Rating: 100-240V, 50/60 Hz
•Power consumption: 150W
•Power Connectors In/Out: PowerCON power cord input and output

Data Connection:
•Sinal Connectors In/Out: 3 Pin XLR inputs and outputs (5 Pin XLR optional)

• Housing: ABS plastic fireproof material
• Housing color: black (white optional)

Safety Devices
• Power failure memory
• Electronic protection against short circuit

Work Enviroment
• Enviroment temperature: -25 °C -40 °C

Cooling System
• Cooling: forced air convection with 1 fan

Internal protection
• IP rating: IP20

Mechanical Specification
• Length: 254 mm
• Width: 204 mm
• Height: 147 mm
• Net Weight: 3.5 kgs

• Power input cable included, length 1.3mtr
• Power cable: 1.5mm2, PVC
• DMX cable not included (optional)
• Safety cable not included (optional)
