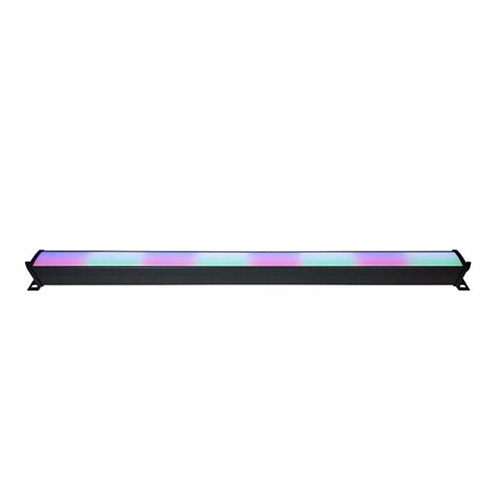

LBIP-224A1(3IN1)B

LED Bar Indoor Pixel,  224 X 5050 RGB 3IN1, IP20, Black Shell

Categories: .

ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 40W

LEDS
▪ LEDs: 224x5050RGB/0.2W
▪ CRI: Ra>95
▪ Dimmer K Hz:10KHz
▪ Drive mode: constant current

OPTICS
▪ 3 lenses optional (frosted, opaque, and clear)
▪ Luminance (per filter): clear 3,958 nits, frosted 1,049 nits, opaque 55 nits
▪ Optic lens: acrylic, effective diameter 63mm

COLOR SYSTEM
▪ Color Mixing: RGB (3IN1)

EFFECTS
▪ 16 individually controllable cells
▪ 59 built-in auto/sound active macros w/speed control
▪ Built-in microphone
▪ Variable electronic strobe

CONTROL AND PROGRAMMING
▪ Protocal: DMX 512
▪ Control Modes: DMX512, M/S, auto mode, sound
▪ DMX channels: 7/20/52CH
▪ Display: Easy-to-use 4-button LED control panel

CONNECTIONS
▪ Data in/out:XLR 3Pin(XLR 5Pin optional)
▪ Power in/out: IEC (POWERCON IN & OUT optional)

Cooling System
▪ Cooling: natural heat dissipation, no fan, no noise

WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

Safety Devices
▪ Electronic protection against short circuit
▪ Protection: Overcurrent, overvoltage and overheating

CONSTRUCTION
▪ Housing: Aluminum
▪ Color: Matte Black
▪ Protection rating: IP20

MECHANICAL SPECIFICATION
▪ Length: 1085 mm
▪ Width: 66 mm
▪ Height: 82 mm

WEIGHT
▪ Weight: 1.45kg

ACCESSORIES
▪ Power input cable:  0.75mm2, PVC sheath, length 1.4mtr
▪ DMX cable: included
▪ Safety cable: not included (optional)
▪ Mounting bracket: included (2pcs/pair)
