Light Source
▪ Main Light: 5 x 120W RGBL LEDs
Outer Circle: 120 x 0.5W RGB LEDs
▪ Total Lumen Output of Fixture: 13,000 lumens
▪ Life Expectancy: 20,000 hours
Optics
▪ Beam Angle: 3°-45°
▪ Field Angle: 4°-50°
Other Effects
▪ Outstanding strobe effect with variable speed
▪ Smooth dimming 0-100%
▪ Outstanding color macro effects
▪ Outstanding color mixing
▪ 5 individual light heads with pan/ tilt movement,can be controlled individually

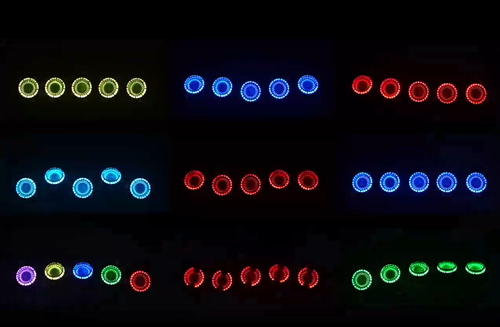

▪ The outer circle of the light head has 24 LEDs, which can be controlled individually
▪ Sharp and saturated beam effects
▪ Linear focusing structure
Pan & Tilt
▪ Pan Movement: 59°
▪ Tilt Movement: 221°
▪ Automatic Pan/Tilt position correction
▪ Minimal color temperature
Control
▪ 4 touch button control panel
▪ Display: LCD display
▪ Protocols: DMX512/Master-slave/Voice control/Self-propelled/RDM
▪ DMX Protocol Modes: 5
▪ Control Channels: 21/41/71/75/85/170
Electrical and Connectors
▪ Input Voltage Range: 100-240Vac; 50/60Hz
▪ Power Consumption: 787W
▪ Power In/Out: Waterproof power connector in/out
▪ Data In/Out: 3-pin or 5-pin waterproof XLR
Physical Information
▪ Fixture Dimensions:1000x353x195mm
▪ Power in/out: Waterproof power connector in/out
▪ Weight: 30 kg
Work Environment
▪ Maximum Ambient Temperature: 40°C
▪ Minimum Operating Temperature: -10°C
▪ Maximum Surface Temperature: 75°C
▪ Protection Rating: IP66
Construction
▪ Color: Black
▪ Housing: module pressing high strength alloy
▪ Protection rating: IP65
Accessories
▪ Power input cable included, length 1.0mtr
▪ DMX cable included, length 1.0mtr
