LFRPO-1212A1(5IN1)B

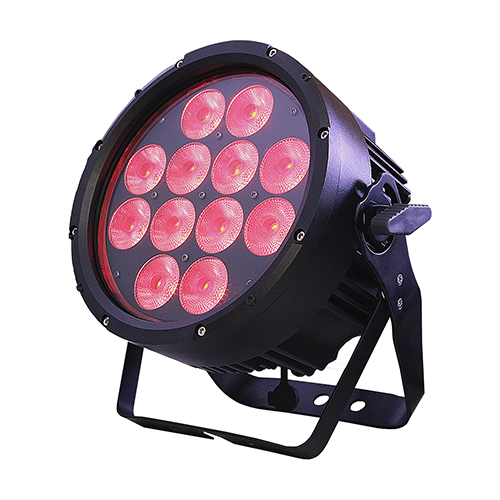

LED Flat Round Par,12X12W RGBWA(5IN1),25º,IP65,Black Shell

Electrical
▪ AC power: 100-240 V nominal, 50/60 Hz
▪ Typical total power consumption: 170 W

Optics
▪ Light source: 12 x 12 W RGBWA 5IN1 LEDs
▪ Beam Angle:25º
▪ Minimum LED lifetime: 50 000 hours (to >70% luminous output)

Dynamic Effects
▪ Color mixing: RGBWA
▪ Electronic dimming: 0 – 100%
▪ Strobe and pulse effects: Variable speed and action, random strobe
▪ 5 auto-running modes,rainbow channel and rainbow effect

Control and Programming
▪ Control options: DMX
▪ DMX channels:4/8
▪ DMX address setting: Control panel with LED display
▪ Stand-alone programming: Control panel with LED display
▪ Protocol: DMX512

Construction
▪ Housing: Iron
▪ Color(s): Black
▪ Protection rating: IP65

Installation
▪ Mounting: Double bracket, surface or truss mount
▪ Orientation: Any
▪ Location: Outdoor use only

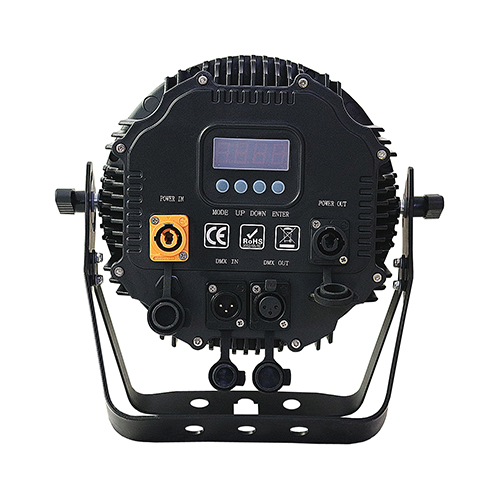

Connections
▪ AC power in/thru: PowerCon
▪ DMX data in/thru: 3-pin XLR (5-pin XLR Optional)

Thermal
▪ Cooling: Forced air convection
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C

Physical
▪ Length: 298 mm
▪ Width: 268 mm
▪ Height: 158 mm
▪ Weight: 7.0 kg

Approvals
▪ CE
