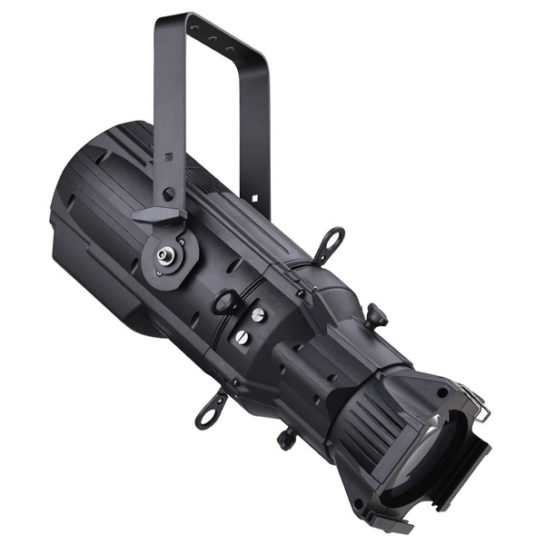

LED Profile Spot 180W
LED Profile Spot 180WLED Profile Spot 180WLED Profile Spot 180W

LPS-A180(4IN1)-13B

LED Profile Spot, 180W ,13°, RGBW 4IN1, 9CH, IP20, Black Shell

LIGHT SOURCE
▪ LEDs: COB 180W, RGBW 4IN1
▪ Color temp: 2700K-6500K
▪ Color rendering index(CRI): Ra>78
▪ LEDs average lifespan: >50,000hrs
▪ Drive mode: constant current

OPTICS
▪ Beam angle: 13° ( 19°/26°/36°/50°optional)
▪ Flicker free (refresh rate >100K Hz)

COLORS
▪ Colors: RGBW 4IN1

EFFECTS
▪ Electronic dimmer: 0-100% linear
▪ Electronic strobe: 1-25 flashes/sec.

CONTROL AND PROGRAMMING
▪ DMX Channel: 9CH

PAN-TILT
▪ Tilt: -90º~+90º

BODY
▪ Housing: ABS engineer plastic
▪ Housing color: black
▪ Housing surface treatment: baking finished

POWER SUPPLY
▪ Power consumption: Max. 200W
▪ Auto switching power supply unit
▪ Power supply: AC100V-240V, 50/60Hz (auto-ranging)

COOLING & THERMAL MANAGEMENT
▪ Thermal management system ensures long life of LEDs
▪ Heatsinks in aluminum for LED source
▪ Cooling: forced air convection, with 1 slient fan

SAFETY DEVICES
▪ Electronic protection against short circuit

RIGGING
▪ With single mounting yoke

ENVIRONMENT AND PHYSICAL
▪ IP rating: IP20
▪ Environment temp: -20°C-45°C
▪ Dimensions(mm): L585 x W360 x H465 (with yoke)
▪ Net weight: 6.4 kgs

ACCESSORIES
▪ Gel frame(i.e. filter frame) included
▪ Gobo holder included
▪ Manual iris not included (optional)
▪ Power input cable included, length 1.0mtr
▪ Power cable: 0.75mm2, PVC
▪ DMX cable included, length 3.0mtr
▪ Safety cable not included (optional)
