ELECTRICAL
▪ Power supply: Electronic auto-ranging
▪ Color Temperature : 2500～10000K
▪ Beam Angle: 3° – 30°
▪ Power consumption: 150W
OPTICS
▪ Light Source: 1X120W RGBL LEDs， 24X0.5W RGB LEDs
▪ Drive Mode: Constant Current
COLOR SYSTEM
▪ Color Mixing: RGBL 4in1
▪ Uniform RGBW color mixing system and rainbow effect
▪ White balance can be adjusted manually
DYNAMIC EFFECTS
▪ Pan : 60° + 16-bit fine
▪ Tiit : 220° + 16-bit fine
▪ Dimmer: Electronic
▪ Shutter/Strobe: Electronic
▪ Zoom: Motorized
▪ Strobe Rate: 0-20Hz
▪ Color Temperature Presets: Yes
▪ Dim Curves: 4
CONSTRUCTION / PHYSICAL
▪ Dimensions: 334*202*196mm
▪ Weight (single unit):6.6kgs
▪ Exterior Color: Black
▪ Housing Material: die-casting aluminum
▪ Display: OLED

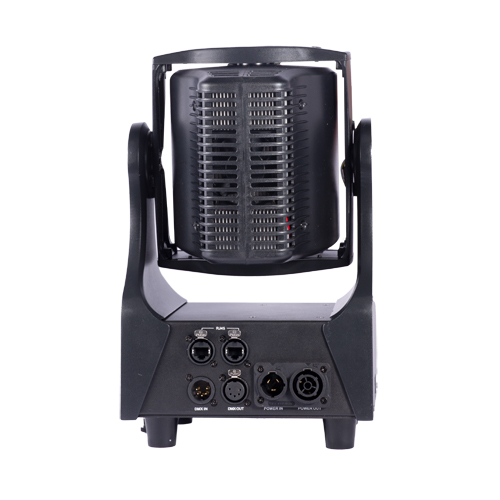

CONNECTIONS
▪ Power In/Out: Powercon
▪ Cable Length (power): 1M
▪ Signal Connection: 5-pin (3-pin optional)
CONTROL
▪ Control Protocol: DMX512、ArtNet、sACN、Maser-Slave
▪ DMX Channels: 19CH/21CH/38CH
COOLING SYSTEM
▪ Cooling: forced air convection, with slient fan,fans’ speeds adjustable
WORK ENVIROMENT
▪ Maximum ambient temperature (Ta max.): 40° C
▪ Minimum ambient temperature (Ta min.): -20° C
SAFETY DEVICES
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
QUALIFICATIONS
▪ IP Rating: IP20 (indoor use)
WHAT’S INCLUDED
▪ Power cable 1 pc
▪ Signal cable 1pc
▪ Hanging omega bracket included (2pcs/pair)
▪ Safety cable included
OPTIONAL ACCESSORIES
▪ Clamps
▪ Flightcase
